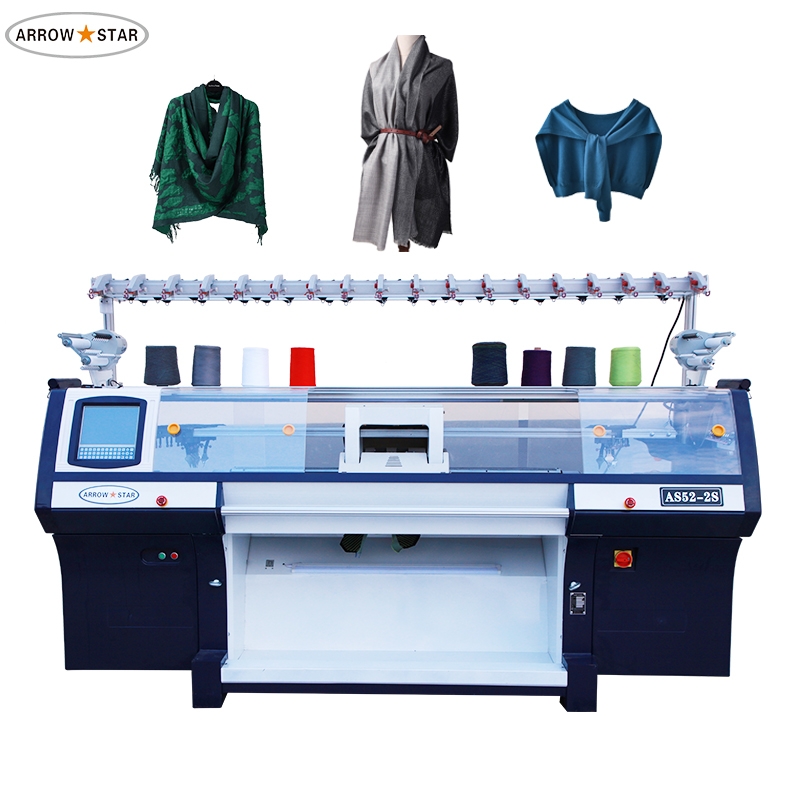

Double System Flat Knitting Machine

  • Jacquard type cardigan flat knitting machine
  • 52 inch, (36-100inch all available )
  • Single carriage with double system
  • Hat, Carpet, Scarf, Sweater
  • Maximum 1.6m/s
  • Multi Language
  • 1.5 KW, AC220v/380V, 50/60HZ
  • Auto adjust
  • Flat
  • ARROW STAR
Shawl flat knitting machine wholesale China can make high definition muslim cap, beanie, hat, scarf, sweater, blanket, baby
clothes, cardigan, Jerseys, school uniform, gloves, rib, cuff, pocket, trousers, and shawl.


Besides woolen sweater flat knitting machine, we can also supply three system sweater flat knitting machine, single system sweater
flat knitting machine, single system with double carriage collar & cuff knitting machine 80inch 1+1, double system with double carriage sweater knitting machine 80inch 2+2 and shoes upper knitting machine
etc.

Specification:


Gauge

1.5G, 2G, 3G, 3.5G, 5G, 7G, 8G, 9G, 10G, 12G, 14G, 16G, Multi-gauge 3-5-7G
Knitting width

52inch, (56inch, 60inch, 66inch, 68inch, 72inch, 80inch, 100inch, 120inch optioned)
Knitting function Knitting single or double jersey, full needles, irregular jacquard, intarsia,  cables, pointel fabric.
Knitting system

Single carriage with double system
Knitting speed

Max 1.6m/s
Stitch density   Stepper motor control, 24-segment  density  choices  subdivision  technology,
adjustable range: 0-650degrees, more accurately control the length of the garment,
using a dosed-loop system monitoring motor current location.
Dynamic stitch

Various density changes and controls can be carried out in the same line.
 Double Racking Motor-driven. Max 1 inch racking each side (2 inches total).
1/2 and1/4 pitch also available from any position.
Takedown device

Two monitor control roller, UP-POSITION roller
Transfer

Simultaneous transfer, front or back, independent of carriage direction.
Split stitch possible without exchanging yarn carriers.
Sinker system The motor control sinker system, the new design of the sinker can play a better weaving
function.
Needle selection

Full jacquard selection via special solenoid actuators. 8 sections selection needles.
Yam feed roller

Prevention coiling device yam feed roller, Electroplating ceramic roller, effective anti static.
Yam ariers The new design of the color change device(lever principle), to eliminate the yarn feeder does not take.
2 sets of yarns are equipped with rollers to reduce yam breakage.
Top tension

24units. One-touch easy threading. Large knots cause machine stop. Small knots cause 0-9 courses at specified knot detection speed, then
automatically resume at set speed.
Stop motion Yarn break, large knot, fabric pileup, shock detection,
piece count, Over-torque, program error, etc.
Drive system Belt drive. AC servo motor.
No lubrication necessary.
Safety devices Full safety cover for noise-suppression and dust-proofing with stop motion sensor and interlock mechanism.
Emergency stop switch.
Emergency power off device.
Ultra-low speed "crawl" setting.
Needle detector

Knitting area alarm, non alarm outside weave area. Automatic reset


















































Shawl flat knitting machine wholesale China uses digital technology to achieve the patterns of weaving, pointel,
tuck, tight tuck, apparent shape, hidden shape, intarsia, floatless intarsia and other irregular structure patterns.




Dimensions of Shawl flat knitting machine wholesale China
Package Size (L*W*H) 2850*1100*1800mm
Packing Material Wooden Case
Net Weight 1000KGS
Gross Weight 1200KGS
