New model Flat Knitting Style and Sweater Product Type Sweater knitting machine

New model Flat Knitting Style and Sweater Product Type Sweater knitting machine

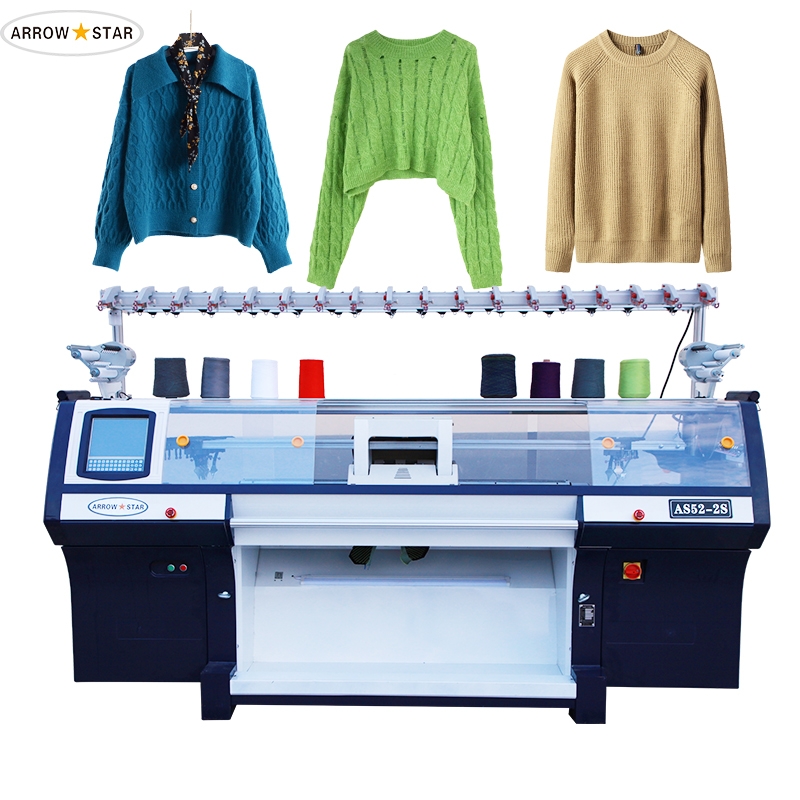

Product name :Flat Knitting Style Sweater knitting machine
Knitting width:52 inch, (36-100inch all available )
Knitwear :Hat, Carpet, Scarf, Sweater
Running speed:Maximum 1.6m/s
Control system:Multi Language
Power :1.5 KW, AC220v/380V, 50/60HZ
Density control :Auto adjust
Knitting Style:Flat
Brand:ARROW STAR
Knitting Machine:Single carriage with double system

Flat Knitting Style and Sweater Product Type Sweater knitting machine can make high definition muslim cap, beanie,
hat, scarf, sweater, blanket, baby clothes, cardigan, Jerseys, school uniform, gloves, rib cuff, pocket, trousers, and shawl.

Besides Flat Knitting Style Sweater knitting machine, we can also supply three system sweater flat knitting machine,
single system sweater flat knitting machine, single system with double carriage collar & cuff knitting machine 80inch 1+1,
double system with double carriage sweater knitting machine 80inch 2+2 and three system shoes upper knitting machine etc.

Specification：

Gauge	1.5G, 2G, 3G, 3.5G, 5G, 7G, 8G, 9G, 10G, 12G, 14G, 16G, Multi-gauge 3-5-7G
Knitting width	52inch, (56inch, 60inch, 66inch, 68inch, 72inch, 80inch, 100inch, 120inch optioned）
Knitting function	Knitting single or double jersey, full needles, irregular jacquard, intarsia, cables, pointel fabric.
Knitting system	Single carriage with double system
Knitting speed	Max 1.6m/s
Stitch density	Stepper motor control, 24-segment density choices subdivision technology, adjustable range: 0-650degrees, more accurately control the length of the garment, using a dosed-loop system monitoring motor current location.
Dynamic stitch	Various density changes and controls can be carried out in the same line.
Double Racking	Motor-driven. Max 1 inch racking each side (2 inches total). 1/2 and1/4 pitch also available from any position.
Takedown device	Two monitor control roller, UP-POSITION roller
Transfer	Simultaneous transfer, front or back, independent of carriage direction. Split stitch possible without exchanging yarn carriers.
Sinker system	The motor control sinker system, the new design of the sinker can play a better weaving function.
Needle selection	Full jacquard selection via special solenoid actuators. 8 sections selection needles.
Yam feed roller	Prevention coiling device yam feed roller, Electroplating ceramic roller, effective anti static.
Yam ariers	The new design of the color change device(lever principle), to eliminate the yarn feeder does not take. 2 sets of yarns are equipped with rollers to reduce yam breakage.
Top tension	24units. One-touch easy threading. Large knots cause machine stop. Small knots cause 0-9 courses at specified knot detection speed, then automatically resume at set speed.
Stop motion	Yarn break, large knot, fabric pileup, shock detection, piece count, Over-torque, program error, etc.
Drive system	Belt drive. AC servo motor. No lubrication necessary.
Safety devices	Full safety cover for noise-suppression and dust-proofing with stop motion sensor and interlock mechanism. Emergency stop switch. Emergency power off device. Ultra-low speed "crawl" setting.
Needle detector	Knitting area alarm, non alarm outside weave area. Automatic reset

Flat Knitting Style and Sweater Product Type Sweater knitting machine uses digital technology to achieve the patterns of weaving,
pointel, tuck, tight tuck, apparent shape, hidden shape, intarsia, floatless intarsia and other irregular structure patterns.

Dimensions of Flat Knitting Style and Sweater Product Type Sweater knitting machine
