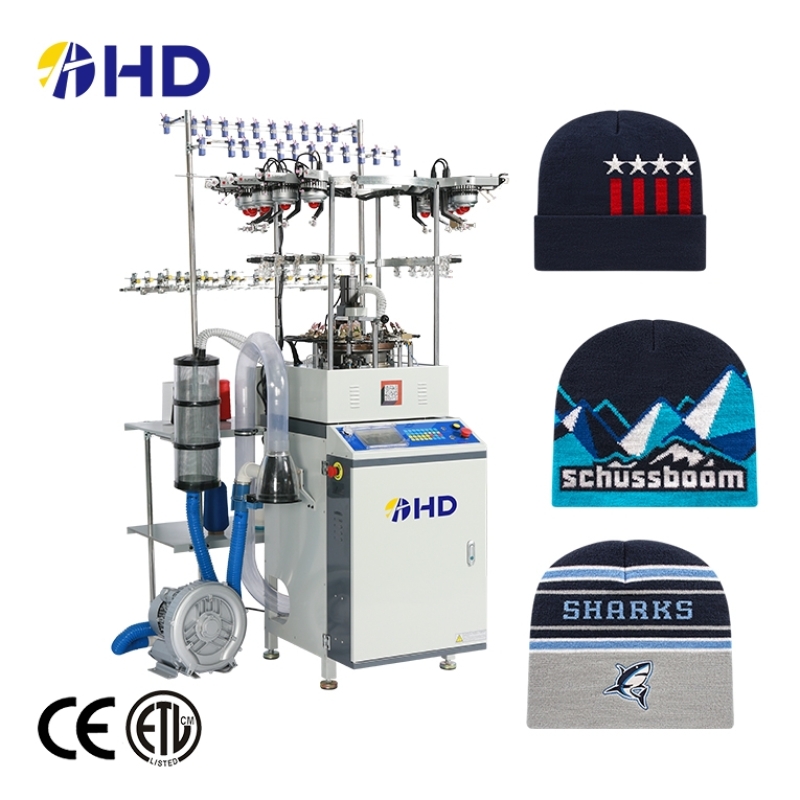

New model High speed automatic circular cap knitting machine
- Specs: 9 inch 144 needles ,9 inch 160 needles ,9 inch 176 needles ,9 inch 192 needles ,9 inch 208 needles ,9 inch 224 needles ,9 inch 240 needles ,9 inch 256 needles ,9 inch 272 needles ,9 inch 288 needles ,9 inch 304 needles ,9 inch 320 needles ,9 inch 336 needles ,9 inch 352 needles ,other customized size
- Brand: HD
- Port:
- Cap knitting machine
- 9 inch
- 144-360 needles
- seamless hat and scarf
- Max 120RPM
- 3 minutes knit one hat , 7 minutes knit one scarf
- 110V/220V/380V ,50-60HZ
- By stepping motor , auto adjust
- 9-14G
- same row at most jacquard 7 colors
Besides cap knitting machine and scarf knitting machine, we can also supply torque knitting machine, beanie knitting machine,
muffler knitting machine, Hat knitting machine, etc.
Specification：
| Cylinder Diameter | 9inch |
| Needle Number | 144-384needles. According to customer request |
| Maximum Speed | 120RPM |
| Machine equipped | 11 sets of 16# high-speed and stable selection actuators |
| Color | Max for 22 color |
| Main Servo-motor | 1KW |
| Power | 110V/220V/380V, 50/60HZ |
High speed automatic circular cap knitting machine is suitable for wool, acrylic, cotton yarn, blended raw materials, knitting a variety of
single jacquard hats, scarves, headband and ribbing of 1*1, 2*1, 2*2......3D.
Dimensions of High speed automatic circular cap knitting machine
| Dimensions | 752*663*1418mm |
| Packing size (L*W*H) | 850*950*1670mm |
| Net Weight | 325KGS |
| Gross Weight | 400KGS |
| Floor Space | 1500*1200*2500mm |
