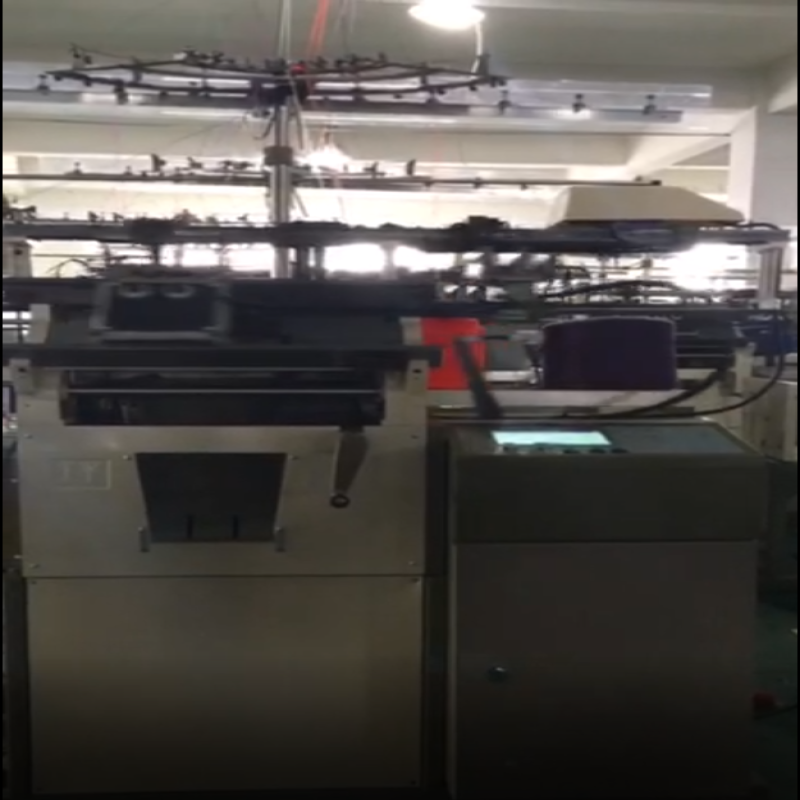

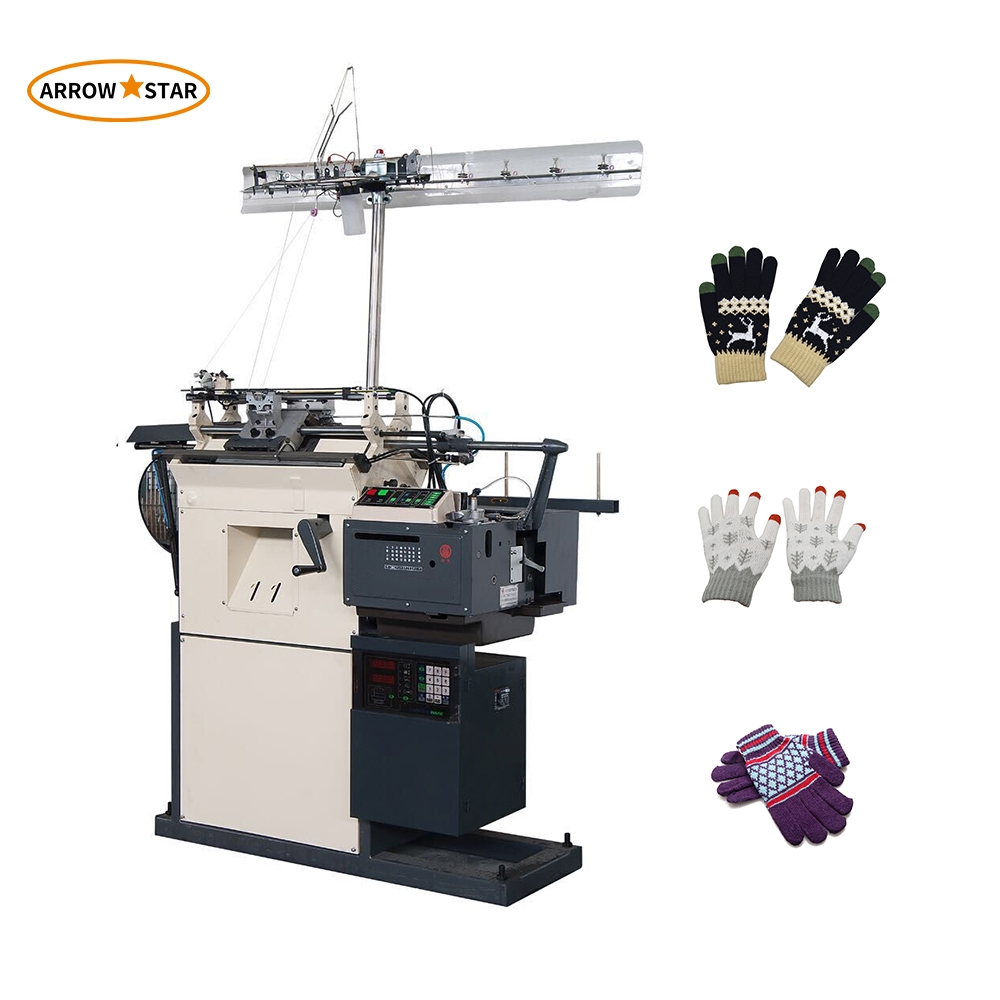

New model Jacquard type glove knitting machine
- Specs: 7G,10G,13G
- Brand: HD
- Port:
- Jacquard type glove knitting machine
- ARROW STAR
- Mainly for knitting labor golve
- Infrared detection
- PLC, engine
- Multi Language
- 500w, 220V/50-60HZ
- Auto adjust
- Flat Glove Knitting Machine
- Free spare parts, Field installation, online suppo
labour gloves and magic gloves automatically and its technology indexes can compare beauty with overseas advanced machine.
Gloves Production Line
Labor gloves production line includes Gloves knitting machine, Terry gloves machine, Glove overlock machine,Glove Packing
Machine, Glove pressing machine, Glove Dotting Machine, Gloves dipping machine.
Basic Parameters
Pitch: 7G 10G 13G
Size : M L XL
Weight : 200KG
Volume : 1000x430x1125mm
Single phase power supply: 220±10%V 50HZ
Main motor power: 500W Main motor
Maximum speed: 300r
Drop detection: infrared detection
Average output per unit: 320 pairs
Average power consumption per unit: 2.8 degrees
Main Features
| ● The operation panel adopts large-screen high-definition LCD full-screen touch, U disk copy output,simple and convenient； |
| ● Servo motor synchronous belt drive, arbitrarily change the head stroke, efficient and stable; |
| ● Stepper motor scissors control system,hook yarn, yarn cutting and yarn laying at any position; |
| ● The needle selection roller adopts the screw linkage to ensure theposition of the front and rear syringes; |
| ● Stepper motor elastic thread feeding system, computer control the size of the mouth,evenly feeding the yarn; |
| ● Intelligent oil supply system, implementing lubrication friction parts; |
| ● Broken finger weaving system to reduce raw material loss. |

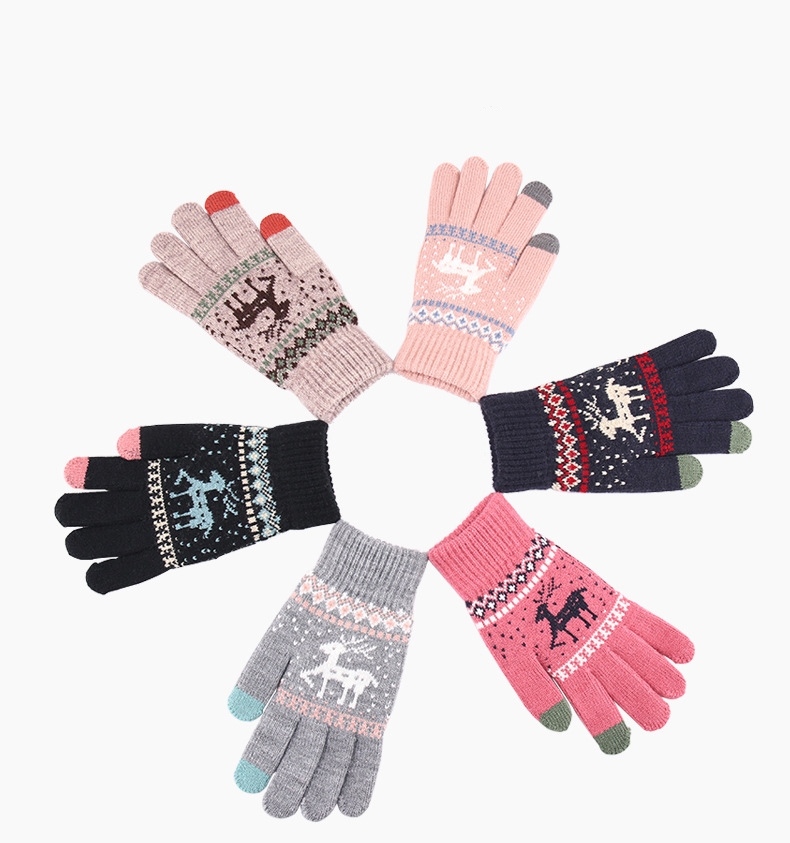

Glove samples knit by Computerized knitted gloves making machine
Output: 150 pcs /day normal.
Packing
Dimensions of Computerized knitted gloves making machine
| Package Size (L*W*H) | 850x950x1670mm |
| Packing Material | Wooden Case |
| Net Weight | 380KGS |
| Gross Weight | 420KGS |
We have prepared jacquard type glove knitting machine in stock which is available for deliver in 7-10 days
after payment.
