High Speed Computerized Socks Knitting Machine
- Specs: AS-6FTP
- Brand: ARROW STAR
- Port: Shanghai

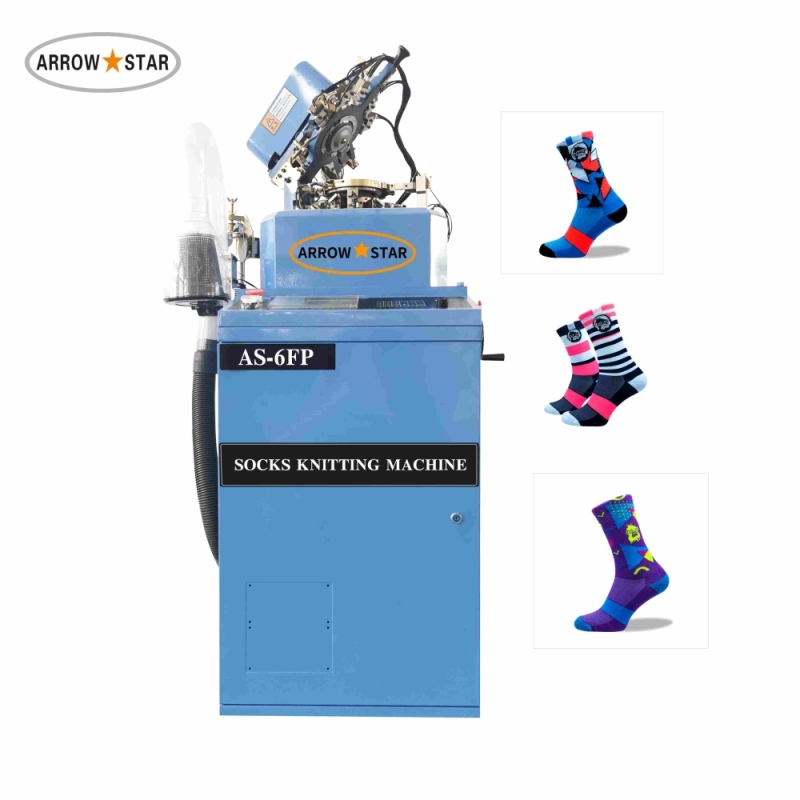

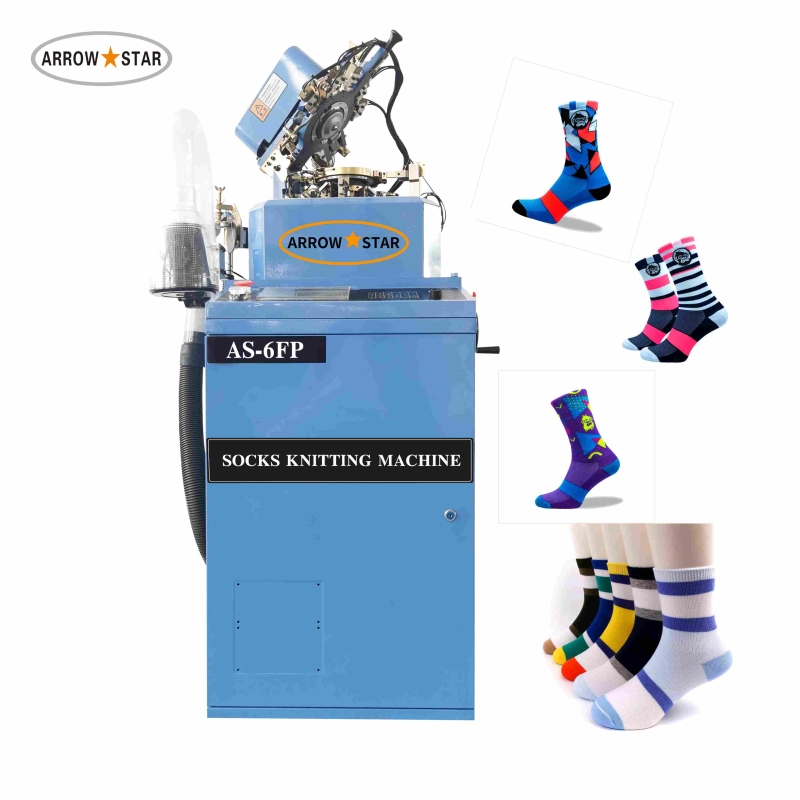

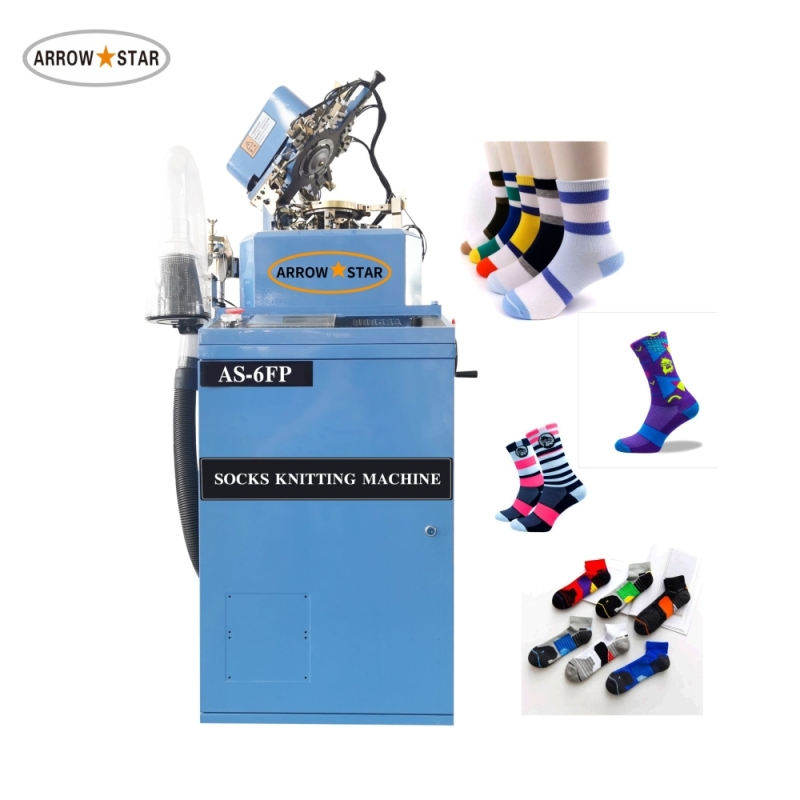

AS-6FP/6FP-I fully computerized plain and Terry sock knitting machine
Fully computerized plain and terry invisiable sock machine
Knitting Type
From ways of knitting: plain, terry including highor low terry, jacquard, mesh, double welts, etc
From knitting styles: business socks, casual socks,high knee socks, etc
From functions: 3d socks, low cut socks, diabeticsocks, left and right socks, big heel socks, smallheel socks, high heel socks,and socks with two-color heel and toe, socks with bottom toe linking,invisible socks (model AS-6FTP-I)
Details of sock knitting machine
Parameter :
Model: AS-6FP/AS-6FP-I
Diameter of cylinder: 3.5" 3.75"
Needle count: 96N-168N,200N
Maximum speed : Plain :350 RPM
Controller/computer: Mingde brand
Way of driving: Servo driving
Power: controller :0.8W
Servo driving and motor :1.3kw
Electricity: 220V/380V/415V
Gross weight: 300KGS
Package size: 0.94X0.75X1.55M
Package: One machine,one package by plywood
Space required: 1x1.4x2.4 M
Main Feature And Function
Machine is with 8 main feeder and 5 groups of auxiliary feeders, 6 colors can be kitted
in one horizontal line, and max. 16 colors can be knitted in the sock
2.Double down pickers, up pickers are adopted, improving and increasing the toe/heel knitting speed, also can knit big or small sock heels, high heels
3.High speed controlling system is adopted with muti-languages: English, Russian, Spanish, Arabic etc. UPS function can keep the running program when electricity fails and continue the previous program when electricity is on again. And huge qty of pattern files can be stored in the sock machine computer system
4. Automatic lubrication system, making it easy for sock machine maintenance. Besides needle or yarn breakage, electronic error will be shown on the display automatically, lessen the sock defective rate, and needle consumption
5. Easy pattern designing software, which can be installed and use on personal computer
6. Branded pneumatic system is adopted for more accurate controlling, quicker movement, longer machine life
7. Running cam are manufactured by our own CNC equipment, making sure the quality, stability and duration
8. Quality cylinder is used preventing white oily sock
Knitting Samples
Product packaging
SOCK MACHINE PARTS AND DELIVERY TIME
Model AS-6F/AS-6FP
Gross weight: 300KGS
Package size: 0.94X0.75X1.55M
Package: One machine,one package by plywood
Space required: 1x1.4x2.4 M
Delivery Time 15-35 Days after payment
