Automatic Semi Auto Placket Knitting Machine for Sweaters Belts Flat Knitting Style

Specs: 2 carriage
Brand: AS
Port:

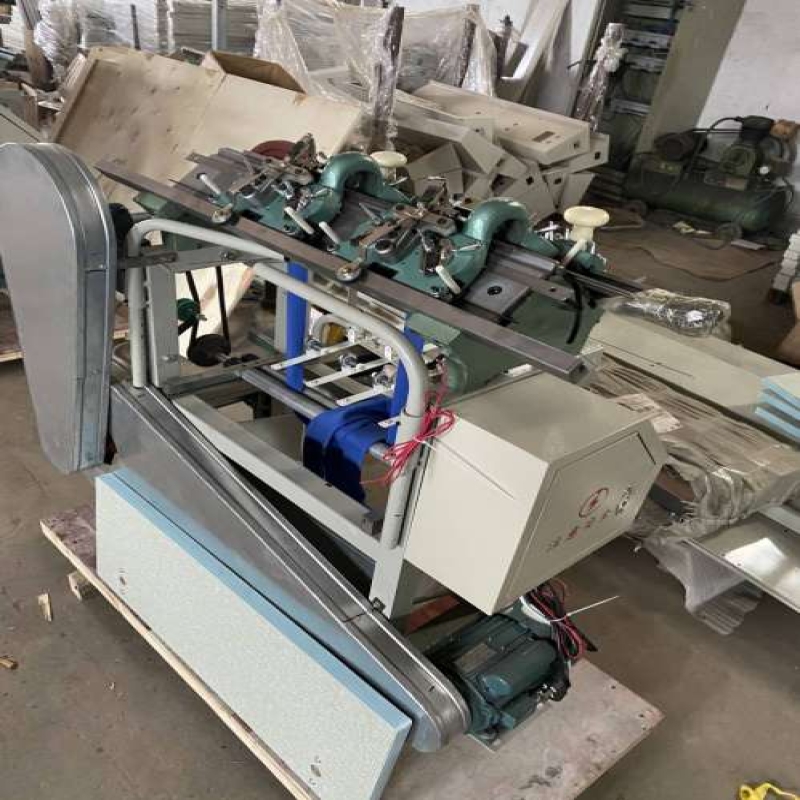

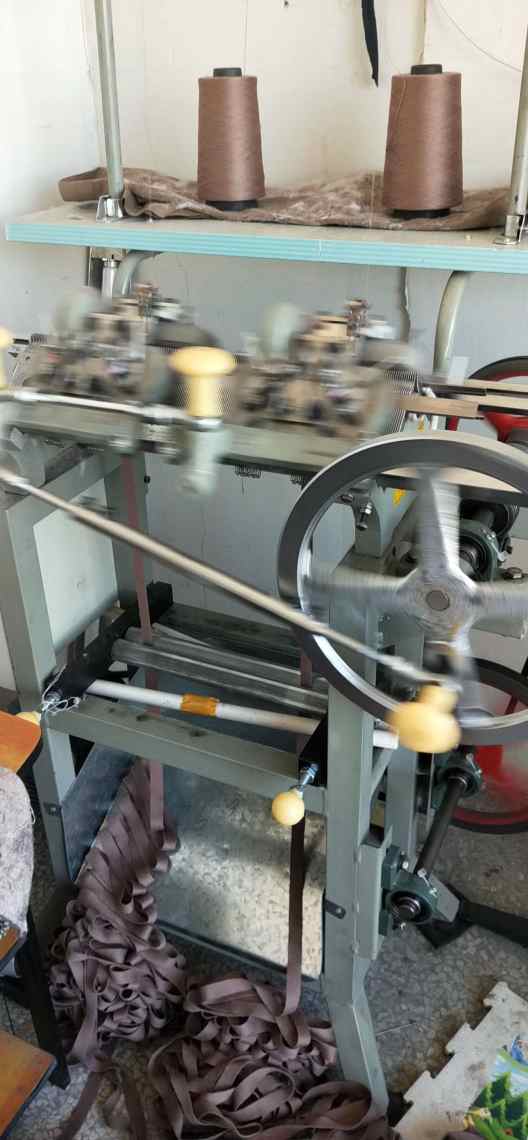

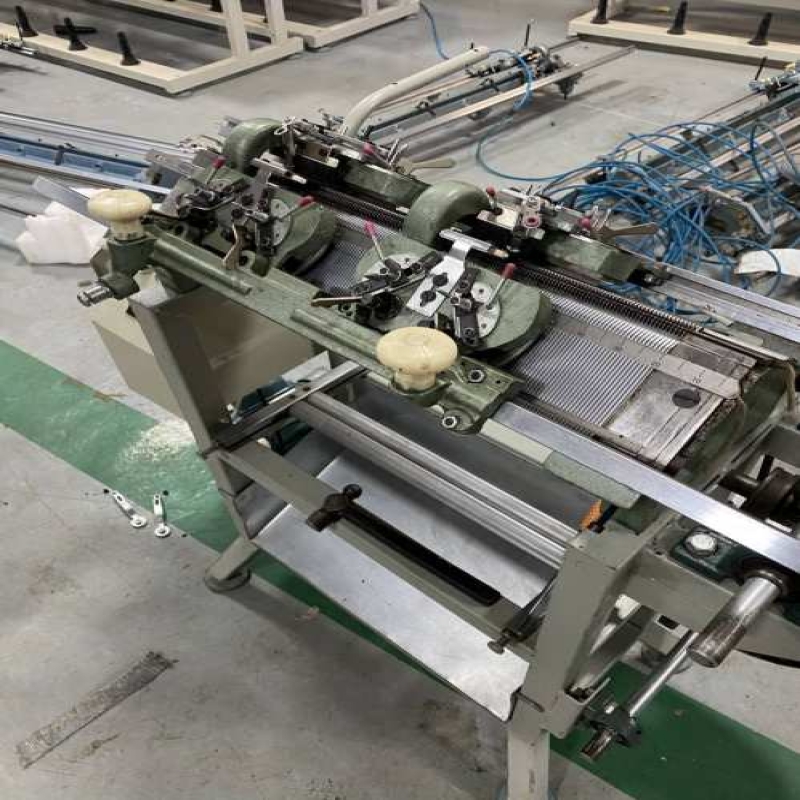

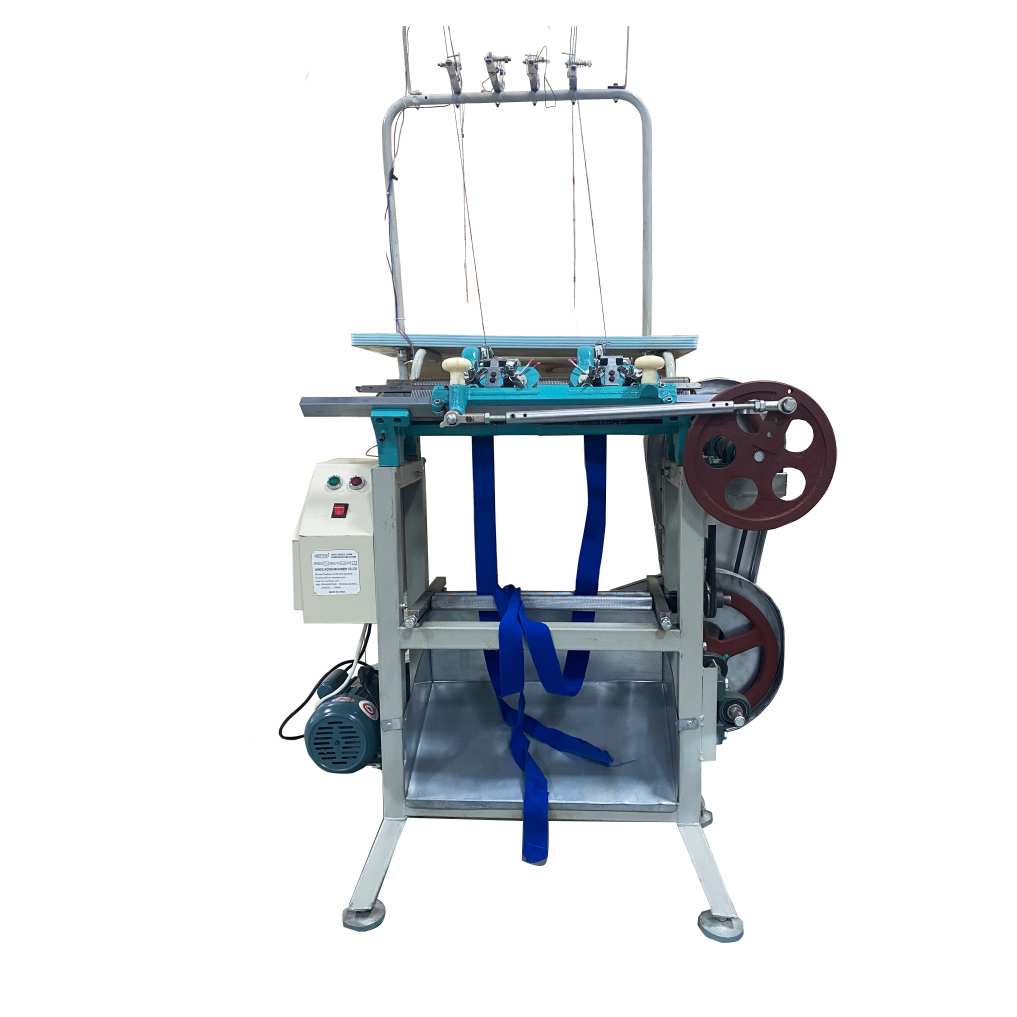

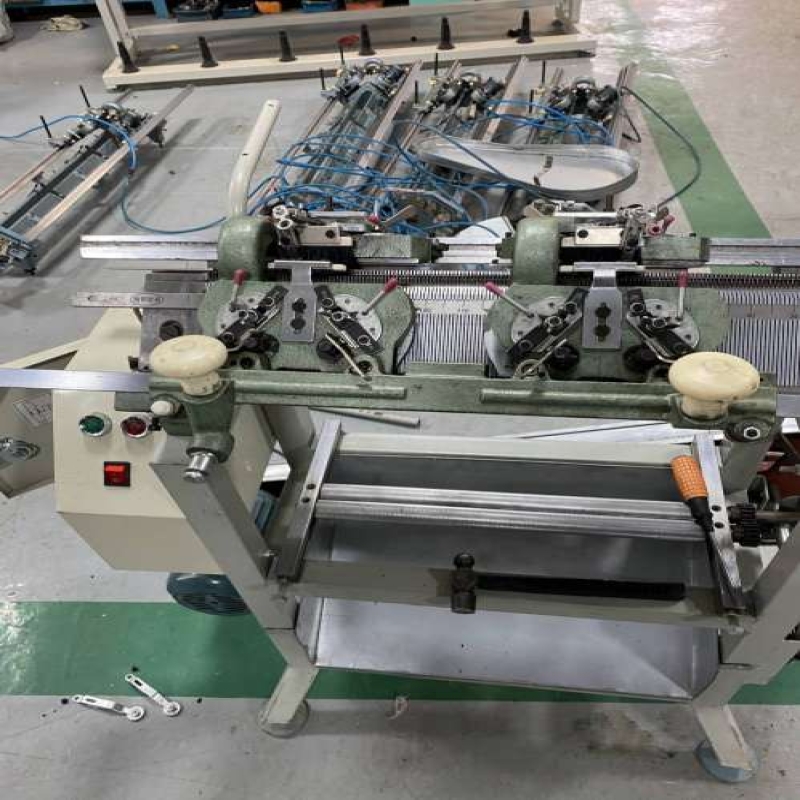

Automatic Semi Auto Placket Knitting Machine for Sweaters Belts

Packet knitting machine is equipped with safety device. When the thread is broken, it will be

automatically stopped. The ribbon width can be step less adjusted. When the machine head

connecting rod is removed, the machine will become a single head electric placket knitting ma

chine,knitting extra wide placket is simple and convenient. The machine is stable, its noise is low.

It has strong adaptability for knitting different woolen yarns. Maintenance is easy.

门襟机

Basic Parameters

Model	AS-PK-18
Knitting Width	3.5G:26" 5G-18G:18"
Needles	High and low butt keenle
Stitch Length	3 setting and justable by screws
Gauge ( needles /inch )	3.5G-18G
Gauge ( needles /inch )	In the needle bed with two kinds gauge which used for two machine heads
Color Change	2-colors
Driving System	By belt drive
Automatic stop motions	In case of yarn breakage ,yarn knot
Power	0.37KW,220V SINGLE PHASE OR 3 PHASE
Measurement	3.5G L=51" W=28" H=50" G.W.200KG N.W.160KG 5/6/7/8/9/10/11/12/13/14/15/16/17/18G L=47" W=26" H=48" G.W.170KG N.W.1
