High Speed Fully Jacquard Circular Knee Cap Knitting Machine

High Speed Jacquard Circular Knee Cap Protect Knitting Machine

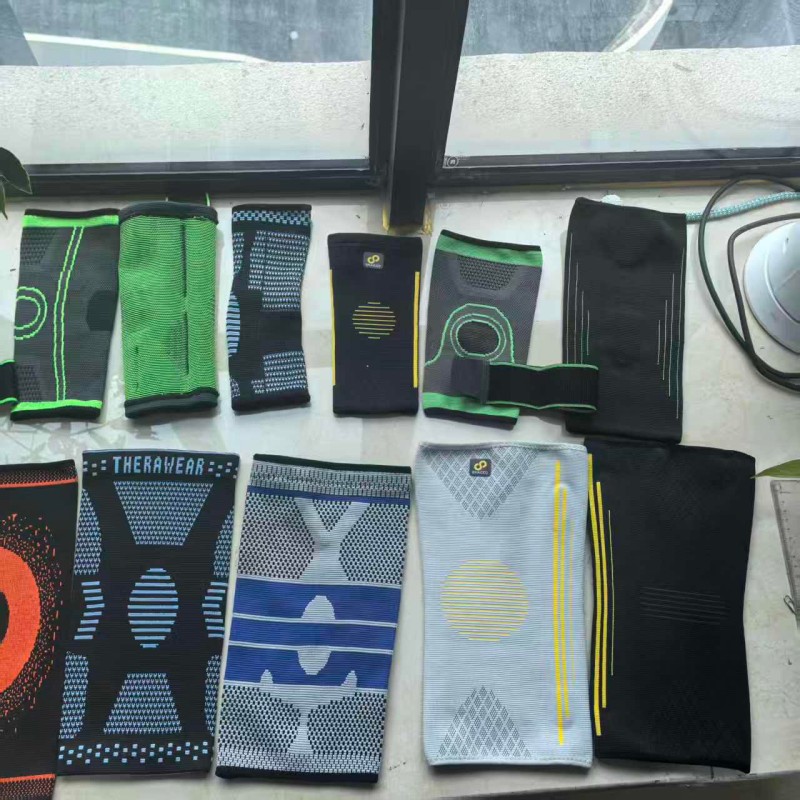

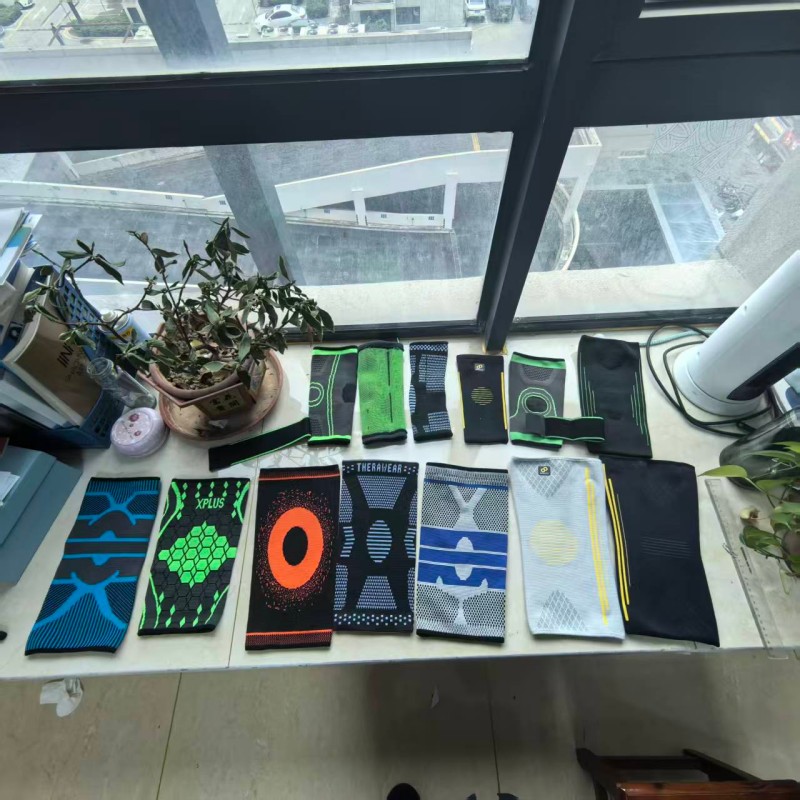

1. Double side jacquard circular knee cap knitting machine ,which can be with dia cylinder size from 6inch to 13 inch ，

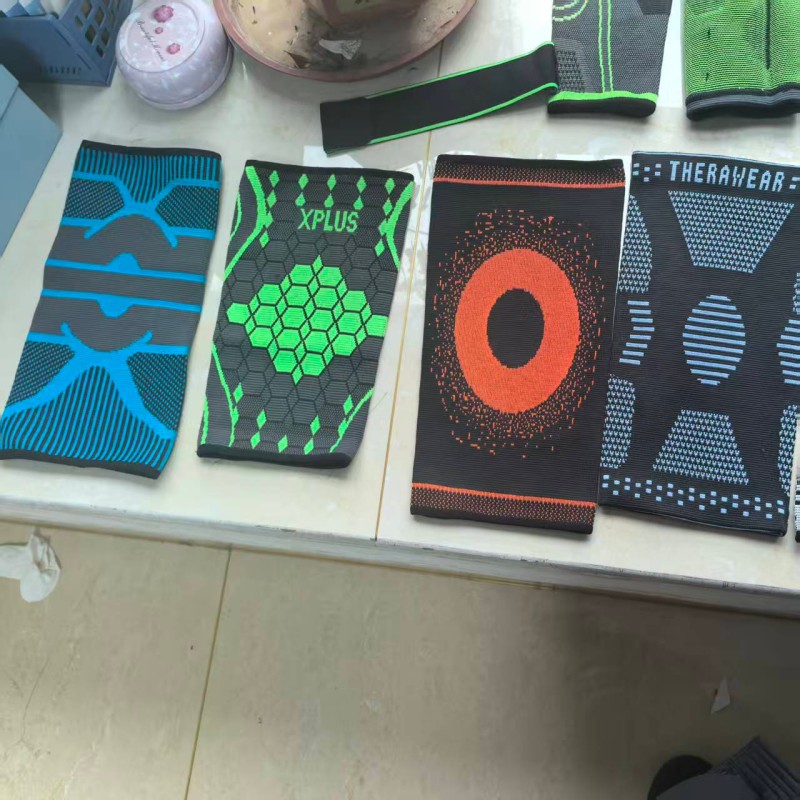

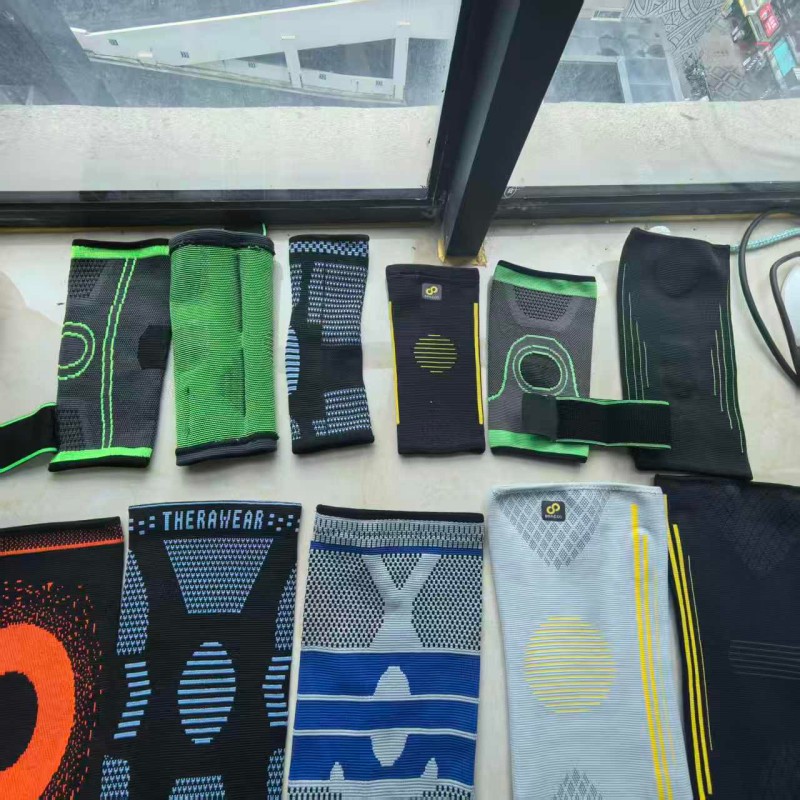

suit for sports health care series product producing , such as jacquard knee cap , jacquard elbow protector,

jacquard ankle protector, jacquard waist protector, headband machine, wrist protector and Etc

2.Equipped with servo motor ,LCD touch screen , fully alarm device ,and english/chinese operation system .

3.Durable usage life , stable running and easy to operation .

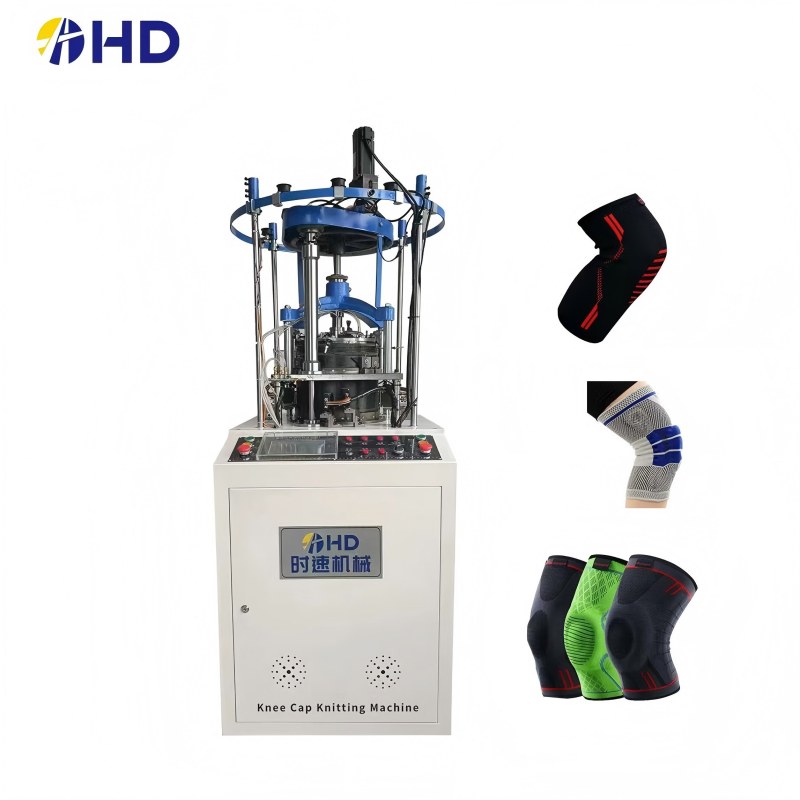

护膝机 (1)(1)

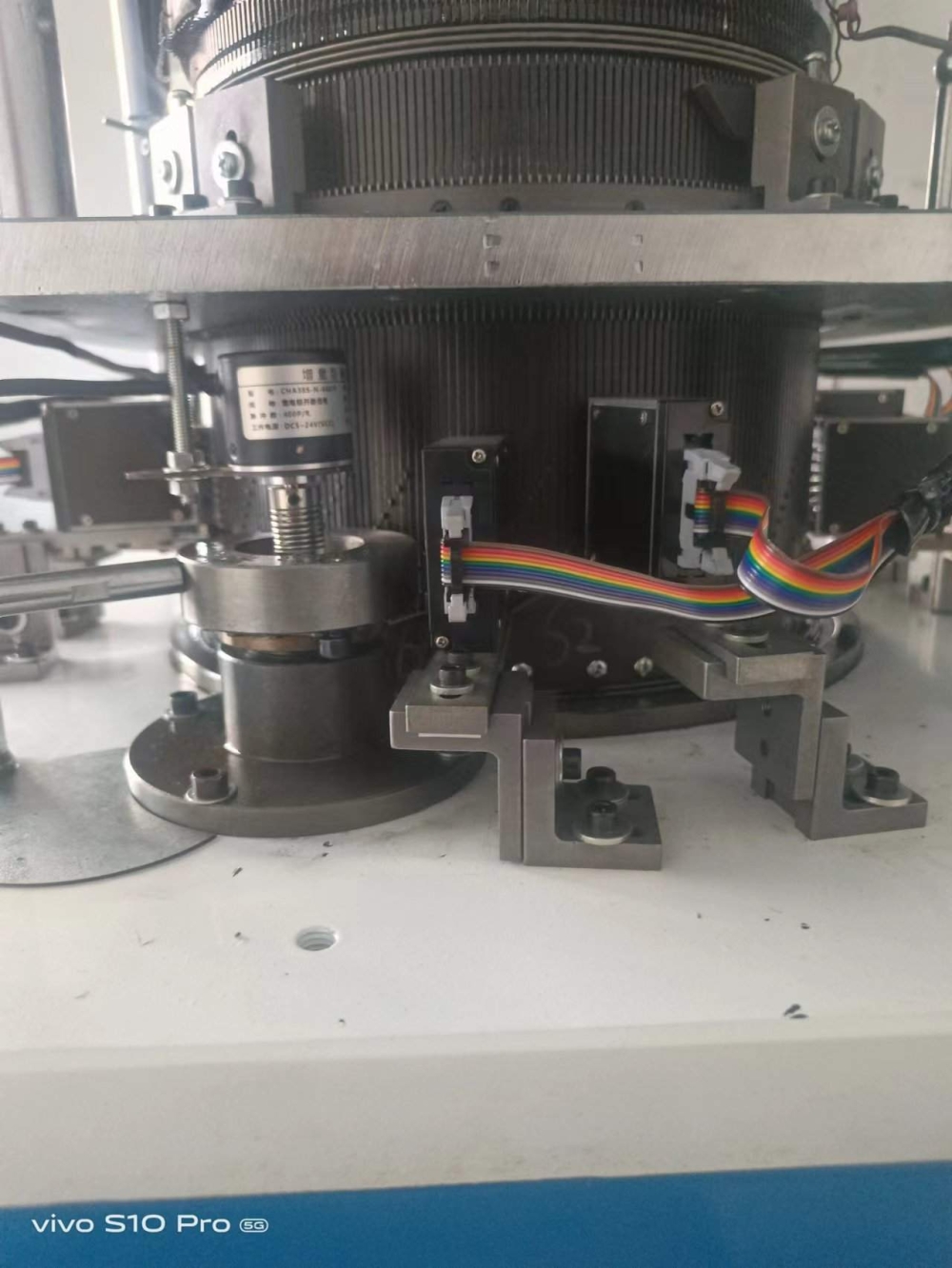

护膝机 (4)

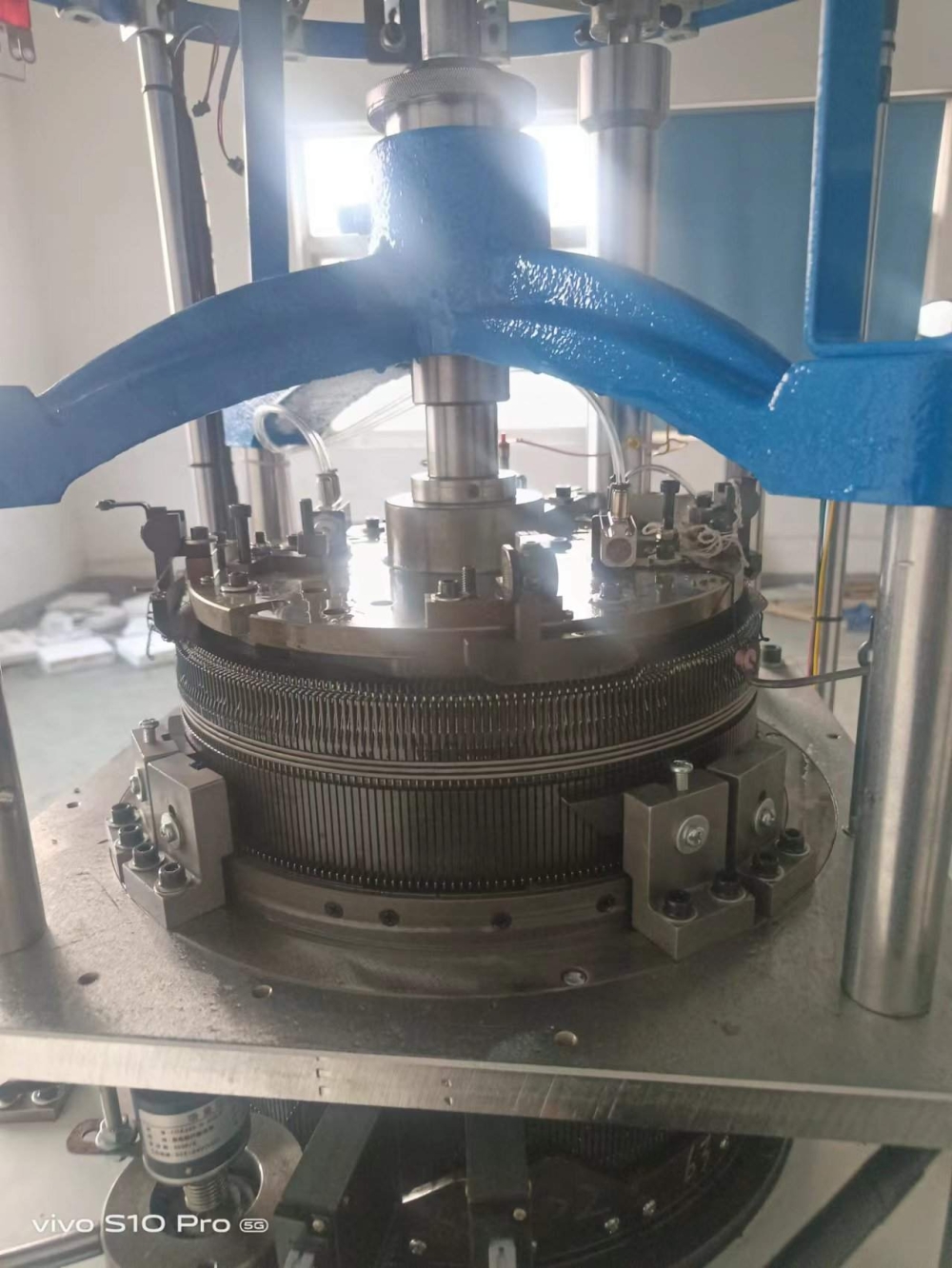

护膝机 (3)

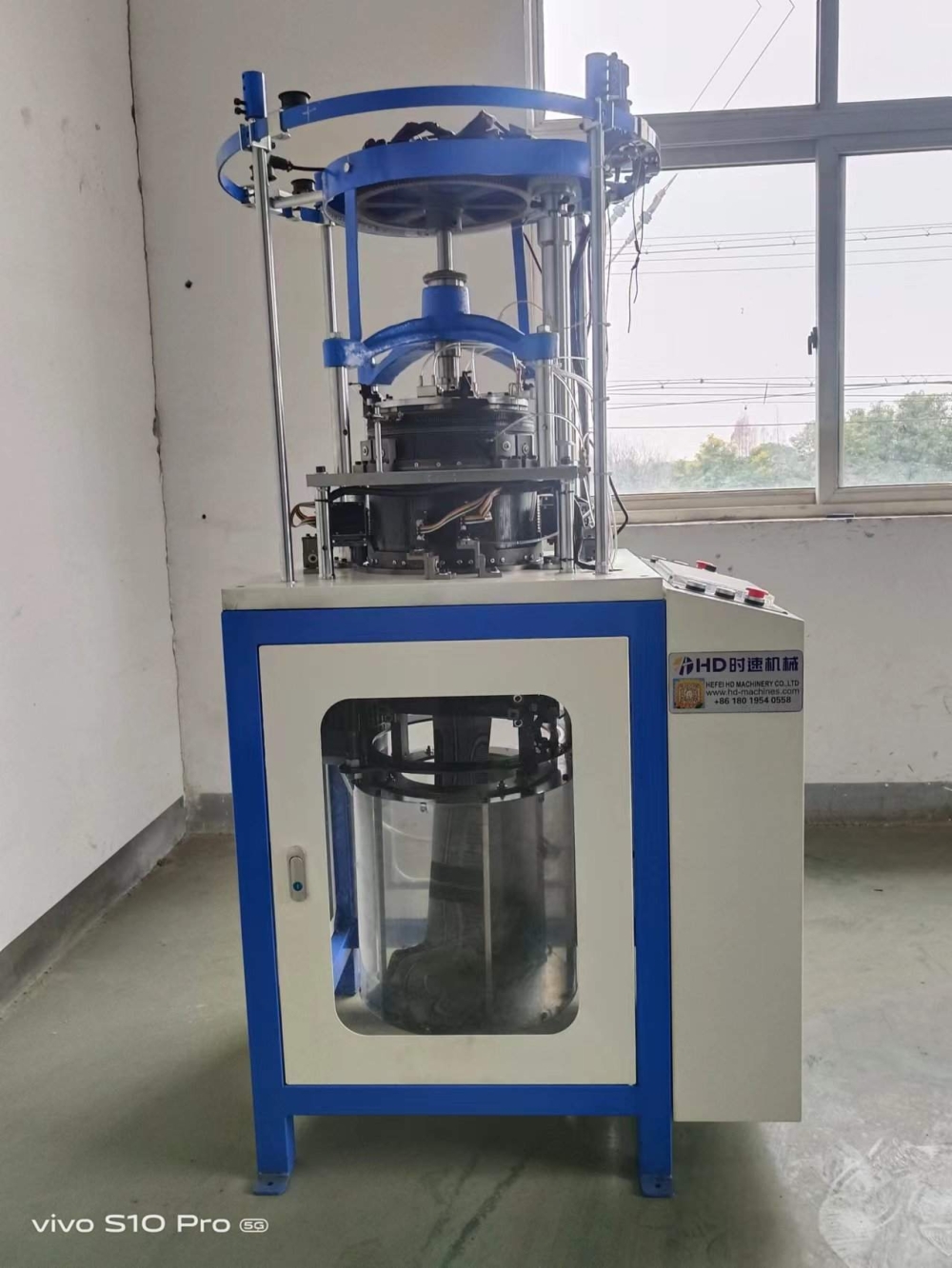

护膝机 (5)

Specification：

Cylindrical size	7”/9”/11”/13”
Number of needles	56-480 needles
Revolutions	Spindle speed: 60-100 rpm depending on fabric material
Fabric feeding method	Uses a roll-type drawbar pull system
Number of yarn feed paths	2-4 channel automatic switching
Display control	7-inch touchscreen LCD
Needle selector	8 high-speed electromagnetic needle selectors (8 blades each)
Density control	Equipped with 4 independent stepper motors to control coil size
Yarn feeding device	Infrared yarn breakage alarm and yarn-separating weft feeder
Alarm and stop	Yarn breakage alarm, skipped needle alarm, low oil pressure alarm, low air pressure alarm, broken needle alarm
Elastic band device	Stepper motor control device
Upper needle plate control	Pneumatic control device for small jacquard stitching
Machine lubrication	Automatic atomized oiling; computer can automatically set the oiling frequency
Motor control	Permanent magnet synchronous motor or geared motor with frequency conversion control
Voltage	220V/380V
Floor area	2500mm×2500mm×2800mm
