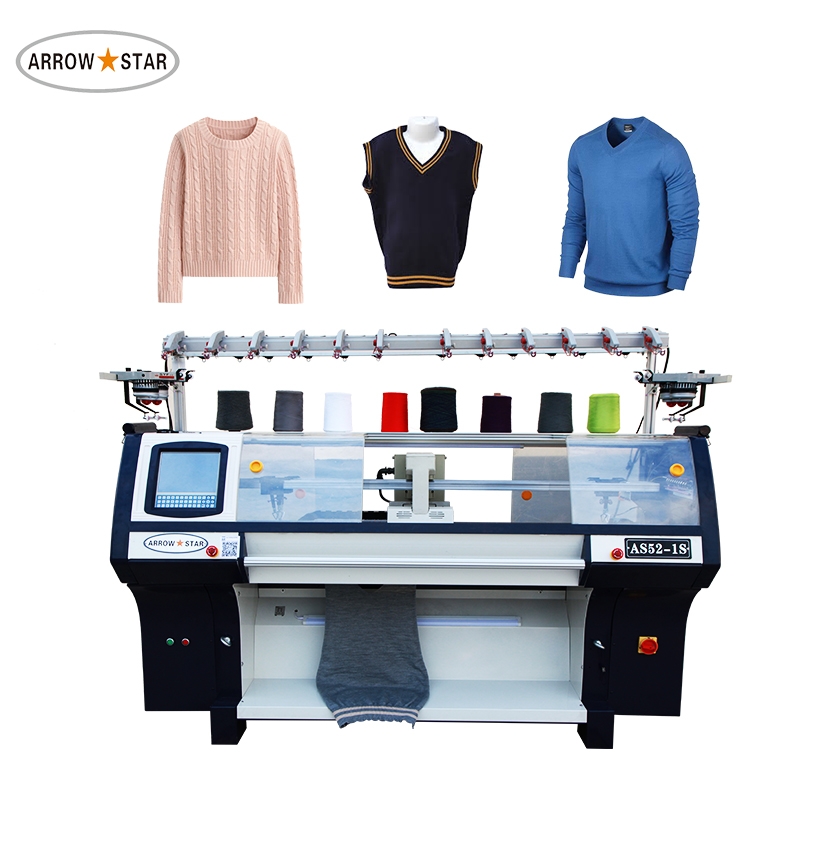

New model 1 system automatic sweater flat knitting machine price

Product name :1 system automatic sweater flat knitting machine
Knitting width:52 inch, (36-100inch all available )
Knitting system:Single carriage with single system
Knitwear :Collar, cuff, hat, carpet, scarf, sweater
Running speed:Maximum 1.6m/s
Control system:Multi Language
Power :1.5 KW, AC220v/380V, 50/60HZ
Density control :Auto adjust
Knitting Style:Flat
Brand:ARROW STAR

1 system automatic sweater flat knitting machine price can make high definition collar, cuff, cap, beanie, hat,
scarf, sweater, blanket, baby clothes, cardigan, Jerseys, school uniform, gloves, rib cuff and shawl.

Besides AS52-1S single system seamless circuar cuff knitting machine, we can also supply three system sweater flat
knitting machine, double system sweater flat knitting machine, single system with double carriage collar & cuff
knitting machine 80inch 1+1, double system with double carriage sweater knitting machine 80inch 2+2 and three
system shoes upper knitting machine etc.

Specification：

Gauge	12G, 14G, 16G
Knitting width	52inch, (56inch, 60inch, 66inch, 68inch, 72inch, 80inch, 100inch, 120inch optioned）
Knitting function	Knitting single or double jersey, full needles, irregular jacquard, intarsia, cables, pointel fabric.
Knitting system	Single carriage with single system
Knitting speed	Max 1.6m/s
Stitch density	Stepper motor control, 24-segment density choices subdivision technology, adjustable range: 0-650degrees, more accurately control the length of the garment, using a dosed-loop system monitoring motor current location.
Dynamic stitch	Various density changes and controls can be carried out in the same line.
Double Racking	Motor-driven. Max 1 inch racking each side (2 inches total). 1/2 and1/4 pitch also available from any position.
Takedown device	Two monitor control roller, UP-POSITION roller
Transfer	Simultaneous transfer, front or back, independent of carriage direction. Split stitch possible without exchanging yarn carriers.
Sinker system	The motor control sinker system, the new design of the sinker can play a better weaving function.
Needle selection	Full jacquard selection via special solenoid actuators. 8 sections selection needles.
Takedown roller	Prevention coiling device takedown roller, Electroplating ceramic roller, effective anti static.
Yam carriers	The new design of the color change device(lever principle), to eliminate the yarn feeder does not take. 2 sets of yarns are equipped with rollers to reduce yam breakage.
Top tension	24units. One-touch easy threading. Large knots cause machine stop. Small knots cause 0-9 courses at specified knot detection speed, then automatically resume at set speed.
Stop motion	Yarn break, large knot, fabric pileup, shock detection, piece count, Over-torque, program error, etc.
Drive system	Belt drive. AC servo motor. No lubrication necessary.
Safety devices	Full safety cover for noise-suppression and dust-proofing with stop motion sensor and interlock mechanism. Emergency stop switch. Emergency power off device. Ultra-low speed "crawl" setting.
Needle detector	Knitting area alarm, non alarm outside weave area. Automatic reset

1 system automatic sweater flat knitting machine price, single system with singe carriage series are used digital
technology to achieve the patterns of transfer, tuck, pointel, jacquard, apparant shape, hidden shape, and other regular
patter knitting functions. It is suitable for woven sweaters, scarves, hats and clothing accessories for silk, synthetic yarn,
wool, acrylic fibers, blending yarn and other raw material. This model can adopt Raynen or Hengqiang software, equipped
with small carriage and fast rotation technology. Which greatly shortens the weaving time, the efficiency of single side
machine is 15% higher than previous type.

Dimensions of 1 system automatic sweater flat knitting machine price
