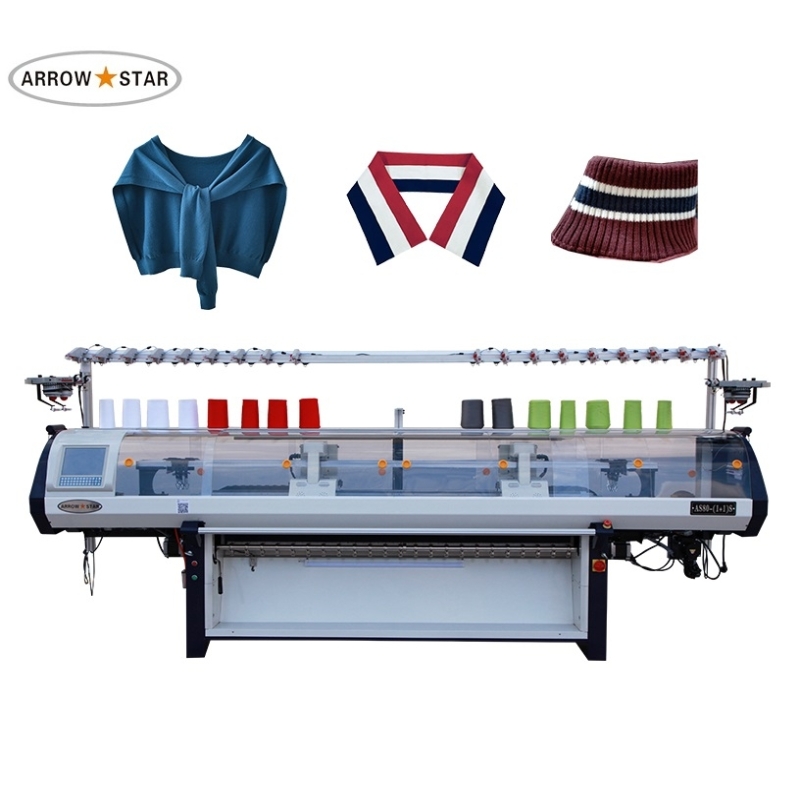

New model 80inch Flat knitting machine for sweater collar wholesale

Product name :80inch Flat knitting machine for sweater collar
Knitting width:80 inch, 100inch, 120inch all available
Knitting system:Double carriage with two systems
Knitwear :blanket, cardigan, Jerseys, shawl, sweater, carpet
Running speed:Maximum 1.6m/s
Control system:Multi Language
Power :1.5 KW, AC220v/380V, 50/60HZ
Density control :Auto adjust
Knitting Style:Flat
Brand:ARROW STAR

Sale 80inch Flat knitting machine for sweater collar wholesale can make high definition collar, sweater, carpet, muslim cap,
beanie, hat, scarf, blanket, baby clothes, cardigan, Jerseys, school uniform, gloves, rib, cuff, pocket, trousers and shawl.

Besides 80inch Flat knitting machine for sweater collar wholesale, we can also supply double system sweater flat knitting machine, three system sweater flat knitting machine, single system sweater flat knitting machine, single system with double carriage collar & cuff knitting machine 80inch 2+2 and three system shoes upper knitting machine etc.

Specification：

Gauge	3G, 5G, 7G, 8G, 9G, 10G, 12G, 14G, 16G, Multi-gauge 3-5-7G, 10-12-14G, 12-14-16G
Knitting width	80inch, 100inch, 120inch optioned
Knitting function	Knitting miss, turk, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns
Knitting system	Double carriage with two system
Knitting speed	Max 1.6m/s
Stitch density	Controlled by stepping motor, 32 section stitch selectable adjustable scope supported by subdivision technology. 0-650, the stitch of the knitwear can be accurately controlled.
Dynamic stitch	Various density changes and controls can be carried out in the same line.
Racking	Controlled by sevro-motor racking within 2 inches and with fine adjusting function.
Takedown roller	Programmed instruction controlled by stepping motor, 32levels selection adjustable range:0-100.
Transfer	Simultaneous transfer, front or back, independent of carriage direction. Split stitch possible without exchanging yarn carriers.
Sinker system	controlled by stepping motor, adjustable to different knitwear, up to be various results of shaping and patterns.
Needle selection	Advanced encoder reading pin. 8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector.
Yam feed roller	Prevention coiling device yam feed roller, Electroplating ceramic roller, effective anti static.
Yam ariers	The new design of the color change device(lever principle), to eliminate the yarn feeder does not take. 2 sets of yarns are equipped with rollers to reduce yam breakage.
Top tension	24units. One-touch easy threading. Large knots cause machine stop. Small knots cause 0-9 courses at specified knot detection speed, then automatically resume at set speed.
Stop motion	Yarn break, large knot, fabric pileup, shock detection, piece count, Over-torque, program error, etc.
Drive system	Belt drive. AC servo motor. No lubrication necessary.
Protection system	Automatically alarm when yarn-breaking knots floating yarn rewind end of knitting, fail of racking needle breakage error programming occur also set up the safety auto-lock protect device.
Needle detector	Knitting area alarm, non alarm outside weave area. Automatic reset

80inch Flat knitting machine for sweater collar wholesale can achieve high efficiency because of four systems, two carriages can work separately, knit simultaneously.

Dimensions of 80inch Flat knitting machine for sweater collar wholesale
