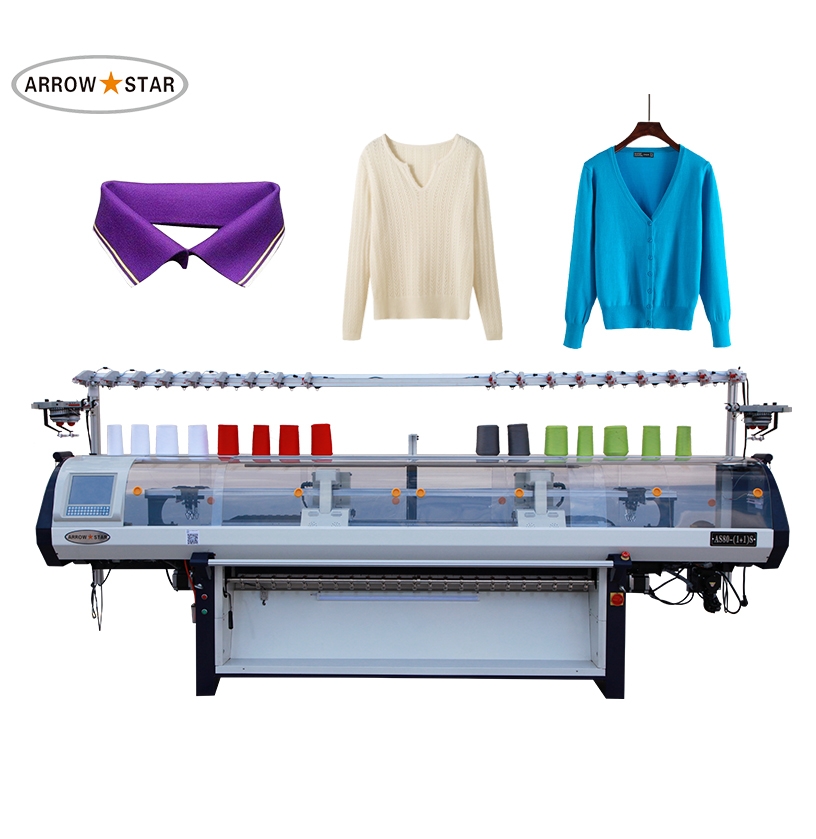

Double Carriage Double System Flat Knitting Machine 80inch(1+1)

  • 1+1 System Flat Knitting Machine For Collar
  • 80 inch, 100inch, 120inch all available
  • Double carriage with two systems
  • blanket, cardigan, Jerseys, shawl, sweater, carpet
  • Maximum 1.6m/s
  • Multi Language
  • 1.5 KW, AC220v/380V, 50/60HZ
  • Auto adjust
  • Flat
  • ARROW STAR


Double Head Fully Jacquard 1+1 System Flat Knitting Machine For Collar can make high definition collar, sweater, carpet,
muslim cap, beanie, hat, scarf, blanket, baby clothes, cardigan, Jerseys, school uniform, gloves, rib, cuff, pocket, trousers and shawl.


Besides Double Head Fully Jacquard 1+1 System Flat Knitting Machine For Collar, we can also supply double system sweater flat
knitting machine, three system sweater flat knitting machine, single system sweater flat knitting machine, single system with
double carriage collar & cuff knitting machine 80inch 2+2 and three system shoes upper knitting machine
etc.

Specification:


Gauge

3G, 5G, 7G, 8G, 9G, 10G, 12G, 14G, 16G, Multi-gauge 3-5-7G, 10-12-14G, 12-14-16G
Knitting width

80inch, 100inch, 120inch optioned
Knitting function Knitting miss, turk, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns
Knitting system

Double carriage with two system
Knitting speed

Max 1.6m/s
Stitch density   Controlled by stepping motor, 32 section stitch selectable adjustable scope supported by subdivision technology.
0-650, the stitch of the knitwear can be accurately controlled.
Dynamic stitch

Various density changes and controls can be carried out in the same line.
Racking

Controlled by sevro-motor racking within 2 inches and with fine adjusting function.
Takedown roller     Programmed instruction controlled by stepping motor,
32levels selection adjustable range:0-100.
Transfer

Simultaneous transfer, front or back, independent of carriage direction.
Split stitch possible without exchanging yarn carriers.
Sinker system controlled by stepping motor, adjustable to different knitwear, up to be various results of shaping and patterns.
Needle selection

Advanced encoder reading pin. 8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector.
Yam feed roller

Prevention coiling device yam feed roller, Electroplating ceramic roller, effective anti static.
Yam ariers The new design of the color change device(lever principle), to eliminate the yarn feeder does not take.
2 sets of yarns are equipped with rollers to reduce yam breakage.
Top tension

24units. One-touch easy threading. Large knots cause machine stop. Small knots cause 0-9 courses at specified knot detection speed, then
automatically resume at set speed.
Stop motion Yarn break, large knot, fabric pileup, shock detection,
piece count, Over-torque, program error, etc.
Drive system Belt drive. AC servo motor.
No lubrication necessary.
Protection
system
Automatically alarm when yarn-breaking knots floating yarn rewind end of knitting, fail of racking needle breakage error programming occur also set up the safety auto-lock protect device.
Needle detector

Knitting area alarm, non alarm outside weave area. Automatic reset


















































Double Head Fully Jacquard 1+1 System Flat Knitting Machine For Collar can achieve high efficiency because of four systems,
two carriages can work separately, knit simultaneously.

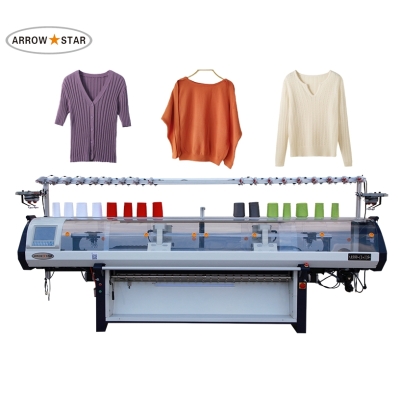

Dimensions of New 80 inch automatic flat knitting machine with double system flat knit
Package Size (L*W*H) 4000*960*1800mm
Packing Material Wooden Case
Net Weight 850KGS
Gross Weight 1000KGS
